Galena Ore: The Lead-Silver Mineral and How It Is Processed

Say a mine owner picks up a heavy, silver-grey lump of galena ore and asks what it will take to turn it into a concentrate somebody wants to buy. Fair question. Galena looks simple. But its weight and softness tell you right away. This mineral won’t act like ordinary rock in a mill.

Galena is lead sulphide, PbS. It’s about 86 per cent lead by weight. The rest is sulphur. That’s a high density. Around 7.4 to 7.6 specific gravity. A hand specimen feels far heavier than a quartz piece of the same size. Walk a prospect and pick up a grey rock that feels like a lump of metal. Think galena first.

What Galena Ore Is and How to Recognise It

In hand specimen, galena is metallic grey. Fresh surfaces often show a bright silver lustre. It has perfect cubic cleavage in three directions at right angles. Hit it with a hammer. It breaks into small cubes and stair-step shapes, not rough fracture. That habit is the quickest field test. Pyrite is harder, around 6 to 6.5 on Mohs scale. It has a brassy yellow colour. Sphalerite is usually brown to black with a resinous lustre. It’s softer than pyrite but harder than galena. Galena sits at hardness 2.5. Yes, that soft. A copper coin scratches it easily. Streak is grey-black. Good field marker.

Silver commonly substitutes into the galena lattice as an impurity. It’s a common trick. Argentiferous galena is simply galena that carries enough silver to matter commercially. Simple as that. In many lead-silver deposits, the silver value changes a marginal lead mine into a viable one. Silver can be the saviour.

Why Galena Matters Commercially: Lead and Silver

Galena is the principal ore mineral of lead. Most of the world’s primary lead comes from it. The metal goes into lead-acid batteries, radiation shielding, and a range of alloys. In the United States, lead-acid batteries took an estimated 67 per cent of apparent domestic consumption in 2025. That’s a big share. Nearly all lead concentrate has been exported since the last primary lead refinery closed in 2013. That’s worth remembering. Those facts come from the U.S. Geological Survey’s Mineral Commodity Summaries for lead.

Silver in galena can be worth more than the lead itself. Surprising? Run the numbers on a typical grade. A galena-rich concentrate might run 45 to 65 per cent lead and 300 to 3,000 grams per tonne silver. That’s wide. The lead pays the shipping. The silver pays the profit. If you own a small deposit, you need to know both metals before deciding anything. No shortcuts.

Where Galena Occurs and What It Is Found With

Galena forms in low-to-medium temperature hydrothermal veins. It also replaces limestone and dolostone. Common settings, both. It’s often associated with sphalerite, pyrite, chalcopyrite, quartz, calcite, fluorite, and barite. A real mineral cocktail. Mississippi Valley-type deposits are classic galena hosts. Stratabound bodies in carbonate rocks, fine to coarse crystalline galena with sphalerite and fluorite. In 2025, primary lead in the United States came from five lead mines in Missouri. Add byproduct production from two zinc mines in Alaska and two silver mines in Idaho. That’s the map. That distribution matters. Galena rarely occurs alone. Remember that.

How Galena Ore Is Processed: Crushing, Grinding and Lead Flotation

Processing galena ore is a two-stage liberation story. Simple, but every step counts. Miss one and you’ll feel it. First you crush and grind. Keep going until the galena grains separate from the surrounding sphalerite, pyrite and carbonate. For a small plant, that’s typically a P80 of 75 to 150 micrometres. P80 is the size 80 per cent of the mass passes. Grind too coarse and you leave locked particles. That’s lost recovery. Grind too fine and you lose lead into slimes. Also bad. There’s a sweet spot. The choice isn’t arbitrary. It comes from mineralogy and testwork. No guessing.

Flotation is the workhorse. Lead flotation usually runs first, with zinc and iron minerals depressed. Add a depressant for sphalerite and pyrite, a collector for galena, and a frother. Then float. The galena floats. The zinc and pyrite stay behind. If the ore carries enough sphalerite, a separate zinc flotation circuit follows. Usually after reactivation. The result? A lead-silver concentrate, and often a zinc concentrate too. This is standard practice in lead-zinc plants. Nothing exotic. For a deeper look at concentrate grades and flotation reagent schemes, see our page on lead concentrate and galena flotation.

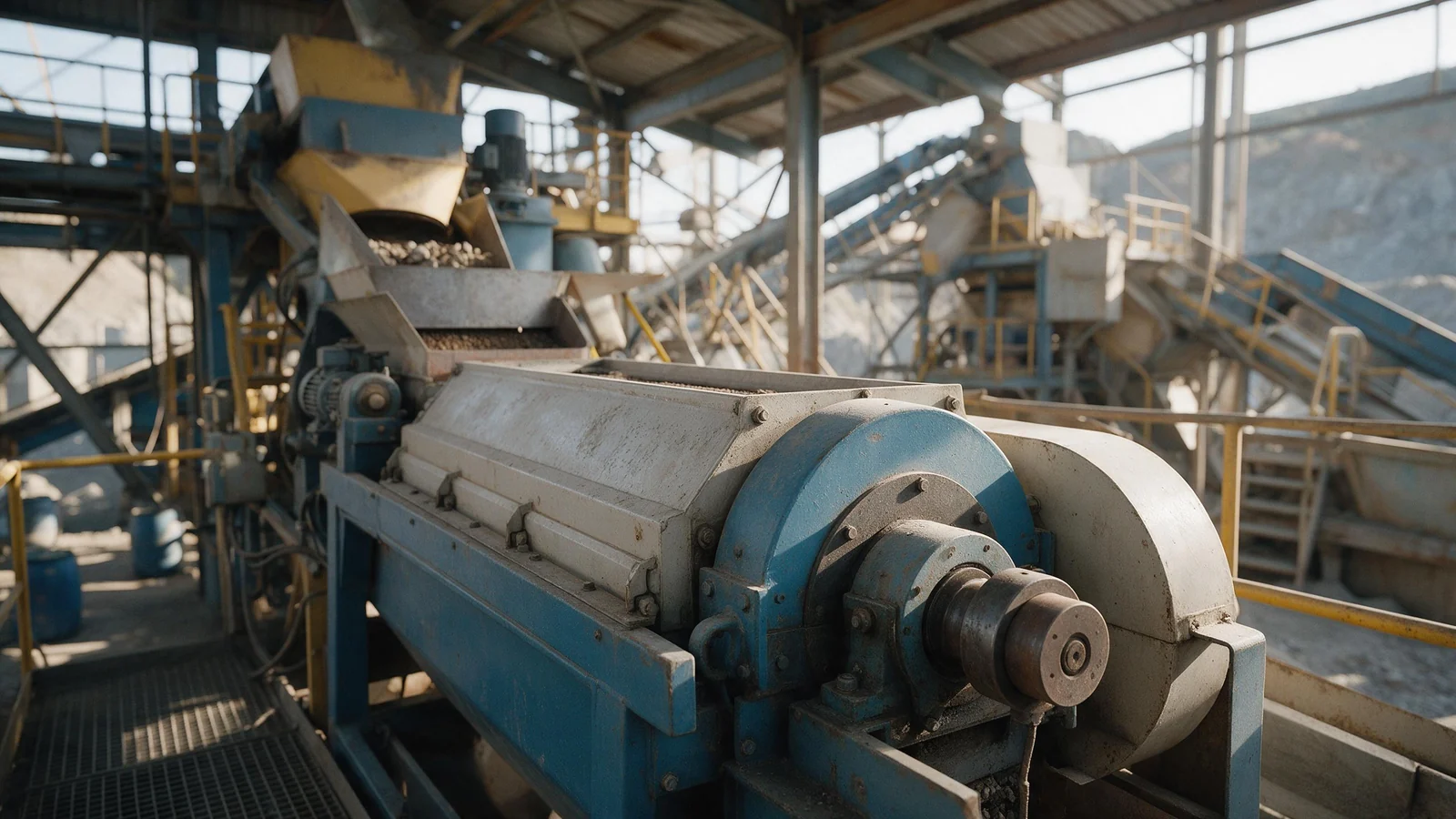

A healthy lead circuit usually makes 45 to 65 per cent lead and 300 to 3,000 grams per tonne silver. That’s not a promise. Ask a laboratory to demonstrate the range on your own ore. The flowsheet usually includes crushing in stages. Often a jaw crusher then a cone crusher, then ball milling. Standard stuff. You’ll find that equipment families are covered in the crushing equipment range.

What a Small Deposit Owner Should Test First

You can’t design a plant from a hand specimen. Sorry. You need a testwork sequence. It’s not optional. It doesn’t have to be expensive. But it has to be representative. No hand-waving. Here’s the order I would follow.

1. Sample by orebody zone, not one grab. Take enough core or channel samples to represent the variation you expect to mine. Not one grab. Build a composite for testing from those samples. Not from a single high-grade pocket. That’s how you get fooled.
2. Run a multi-element assay first: lead, zinc, silver, gold, copper, sulphur, iron, arsenic, and antimony. These elements decide the flotation route and penalty elements. Simple as that.
3. Do mineralogy on a split. You need liberation size, grain size distribution, and which minerals carry the silver. That’s key. Silver can be in galena, in tetrahedrite, or in its own minerals. The route changes accordingly.
4. Measure the Bond ball mill work index. If you can afford it, also abrasion and crushability indices. These set grinding power and liner wear. No guesswork.
5. Run open-circuit flotation tests. Rougher first, then cleaner tests at different grinds and reagent dosages. Once the flow looks good, run a locked-cycle test to simulate a closed circuit. That’s the real deal. The locked-cycle result is what goes into a bankable feasibility study.

If you don’t have a lab, ask a supplier for these tests. They’ll know what to do. A competent mineral processing lab does this work routinely. It’s their bread and butter. Xinhai reports its mining research institute operates a CNAS-accredited laboratory covering 70+ ore types. They perform about 5,000 element analyses per month and conduct Bond work index testing. That’s the test capacity you need behind a flowsheet decision.

Lead-Silver Processing Plants: What a Supplier Should Provide

When you go to market for a galena ore plant, you’re not buying a machine. You’re buying a sequence. Testwork, design, equipment, construction, commissioning, and operation. That’s the full EPC+M+O scope. Ask any supplier to show they can manage all of it. If not, walk away. Otherwise you become the integrator. That’s a full-time job.

Xinhai reports a 1,500 t/d silver-lead-zinc-gold polymetallic flotation expansion EPC in Henan. It started April 2024 and commissioned November 2024. Scope covered process design, equipment manufacturing, civil works, installation, commissioning and construction management. Seven months from site start to start-up. That timeline only works if the testwork was already done. Equipment fabrication ran in parallel with civil works. It’s not a typical greenfield schedule in a remote location. But it shows what a managed EPC can do. Impressive, right? For a broader view of what a supplier should offer, see the solutions overview.

Xinhai reports a Yunnan plant upgrade raised lead concentrate grade from 35.68 per cent to 50.13 per cent. That’s a big jump. Almost 15 points. That kind of improvement often comes from regrinding the rougher concentrate, adding cleaner stages, or changing the collector suite. Or all three. The point isn’t to copy the number. Ask your own test programme what grade your ore can reasonably reach. That’s the real target.

Safety and Environmental Handling of Galena Ore

Solid galena is stable. You can hold a specimen in your hand. But don’t eat it. Wash your hands after handling. The risk comes when you break it. That’s when dust appears. Crushing and grinding galena ore produce lead-bearing dust and fine particles. That’s the real hazard. Smelting produces lead fumes. The U.S. EPA publishes emission factors for lead ore crushing in its AP42 compilation. Those factors exist because the dust is a genuine occupational health concern. See EPA AP42 Leadbearing Ore Crushing and Grinding.

In a plant, dust collection is not optional. Crushers, transfer points and screens need enclosed hoods and baghouses or scrubbers. No open dust. Period. Floors and equipment get washed down. The wash water must go to a contained sump, not a storm drain. Easy to say, harder to do. Tailings from a lead flotation plant contain residual galena, sphalerite and pyrite. They need careful management. Lined storage or thickened tailings management, with water recovery and monitoring wells downstream. The aim is simple. Keep lead out of the water and out of your lungs. Nothing else matters.

If you own a small galena deposit and want to know what a plant for it would involve, the lead-silver ore processing plant page sets out the capacity range, the typical flowsheet and the ore data we need to quote.
